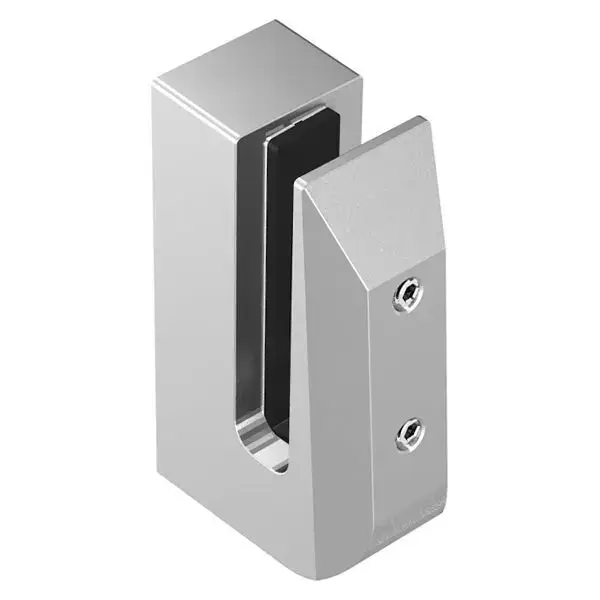

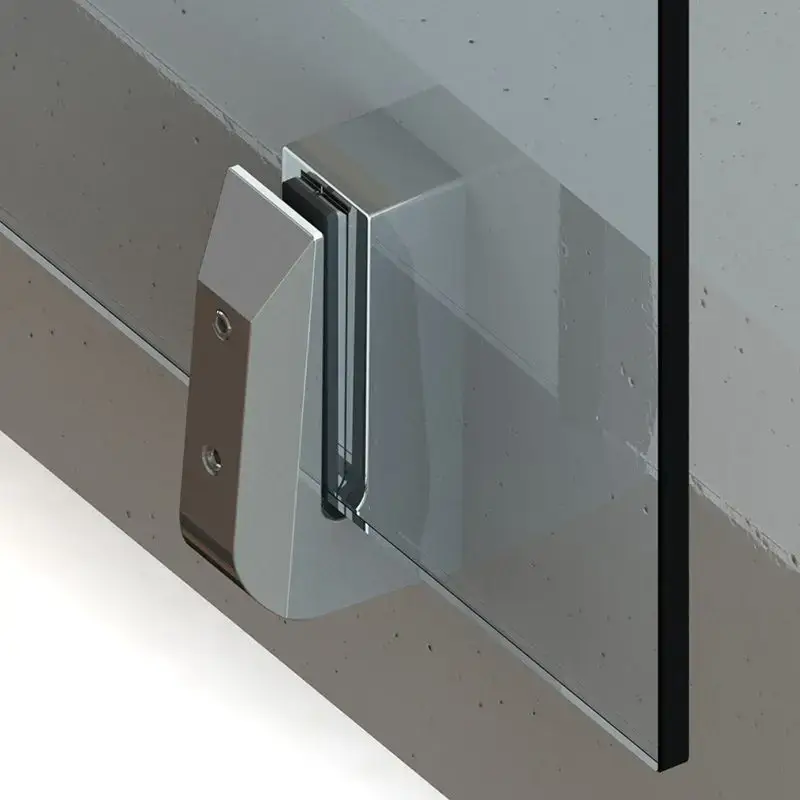

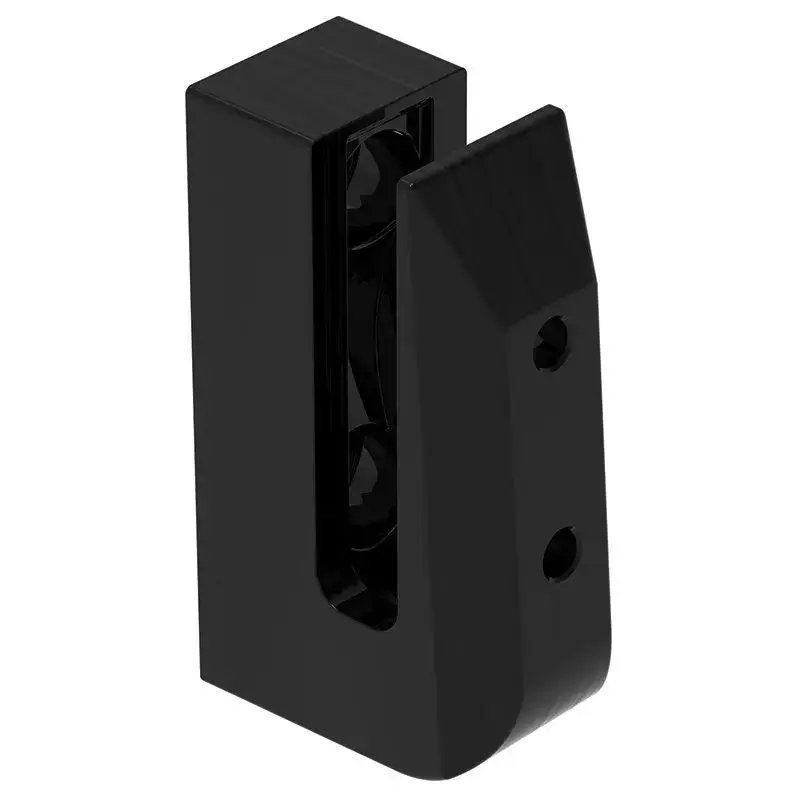

Side mounting short spigot for glass 12 to 17.52 mm

Detailed Description

• Manufactured from low carbon 2205 duplex ultra marine grade stainless steel, allowing for superior corrosion resistance as well as more than double the yield strength and 20% higher tensile strength than stainless steel 316 grade.

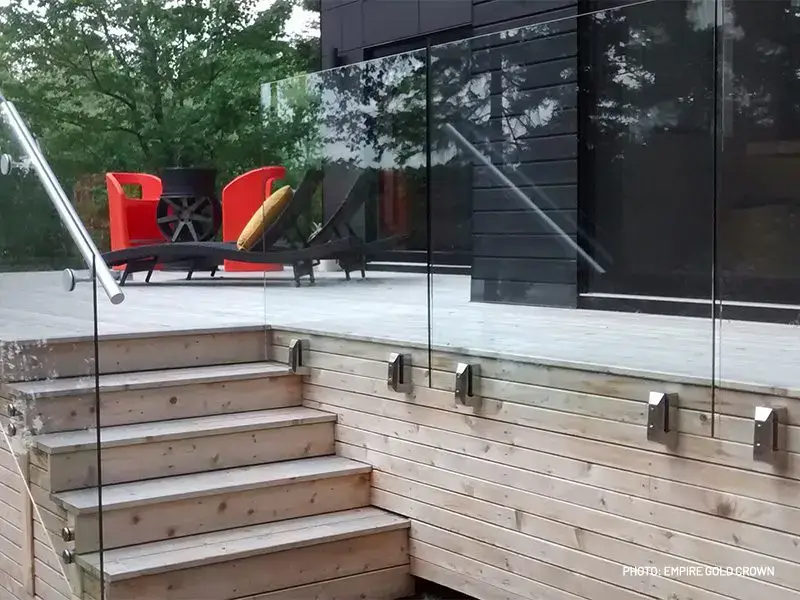

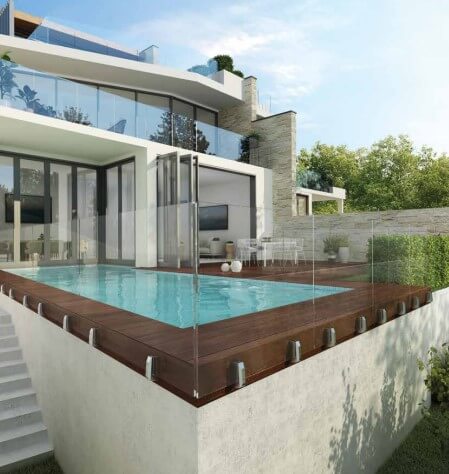

• Ideally suited for use in outdoor structures with a high degree of corrosion due to chlorine and/or sulfur dioxide loading; high humidity; accumulation of harmful substances (for example, coastal regions and swimming pool environments).
  Suitable for 12-17.52mm glass.
  Allows the lens to be tilted 2° backwards or forwards.
  All adjustments can be made from one side.
  Pressure plate model.
  Optional finishing cap set (2 pieces) SSSPIGOTCAP available.
  Fully designed for the National Building Code of Canada.
  Optional fastener set available: SSSPIGOTBOLT.
  For ease of installation, we recommend using our SSSPIGOTSIDT socket tool, which can be purchased separately.
